Reliabelt Bin Conveyor

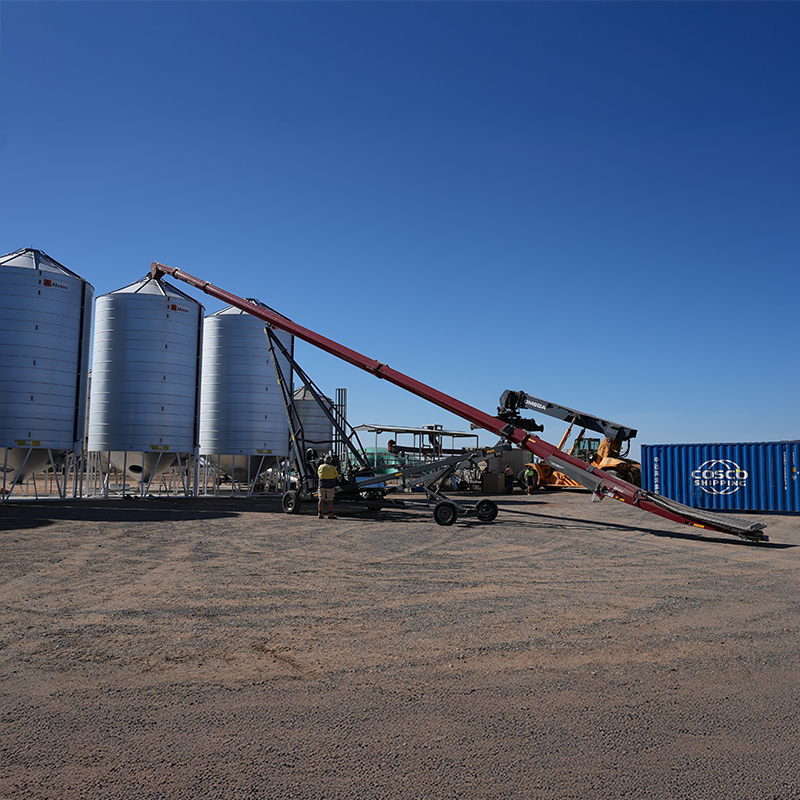

Meridian Bin Fill conveyors are the fast and efficient way to fill your bins. They are available in lengths up to 120’ with PTO or electric drive. Their unique hopper design ensures maxium capacity with minimal spillage.
Features
- 20 inch belt
- Continuous belt with no S-Drive minimising spillage
- Up to 220 Metric Tonnes per Hour
- Low Profile Hopper
Applications
- Load & unload Bins / Silos
Accessories & Options
- Swing Kit
Specifications
| Axel Width | |||||||||||
| Model | Under-Carriage | Engine | PTO | Tube Dia. | Belt Width | Retracted | Extended | Transport Height | Transport Length | Discharge Height (Min) | Discharge Height (Max) |
| 2090 | A-Frame | 55HP Diesel | ✓ | 10” | 20” | 3.81 m | 3.5 m | 20.57 m | 6.52 m | 13.28 m | |
| 20100 | A-Frame | 55HP Diesel | ✓ | 10” | 20” | 4.26 m | 5.48 m | 3.3 m | 22.4 m | 7.31 m | 14.8 m |
| 20110 | A-Frame | ✓ | 10” | 20” | 4.26 m | 5.48 m | 3.27 m | 25.4 m | 8.12 m | 16.35 m | |
